FEL Extruder Gearboxes – Single-screw Extruders
Individuality in Focus

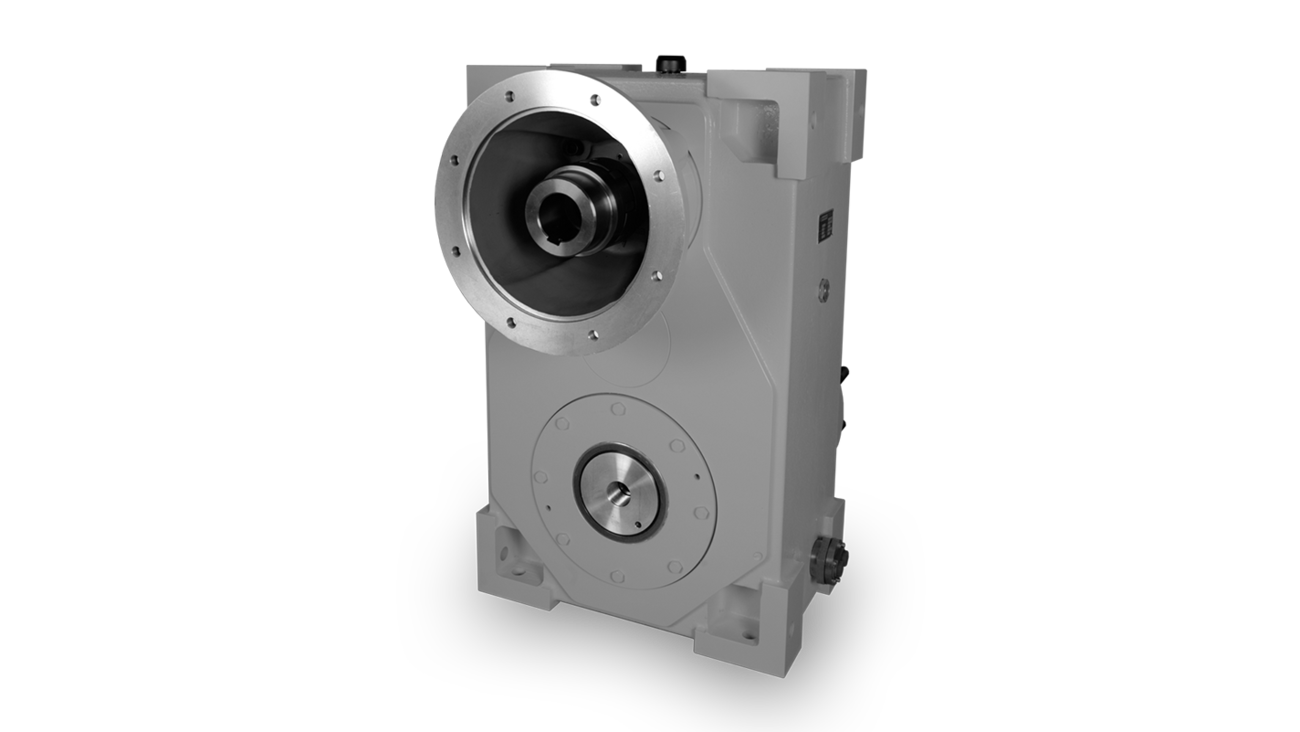

Extruder gearbox FEL

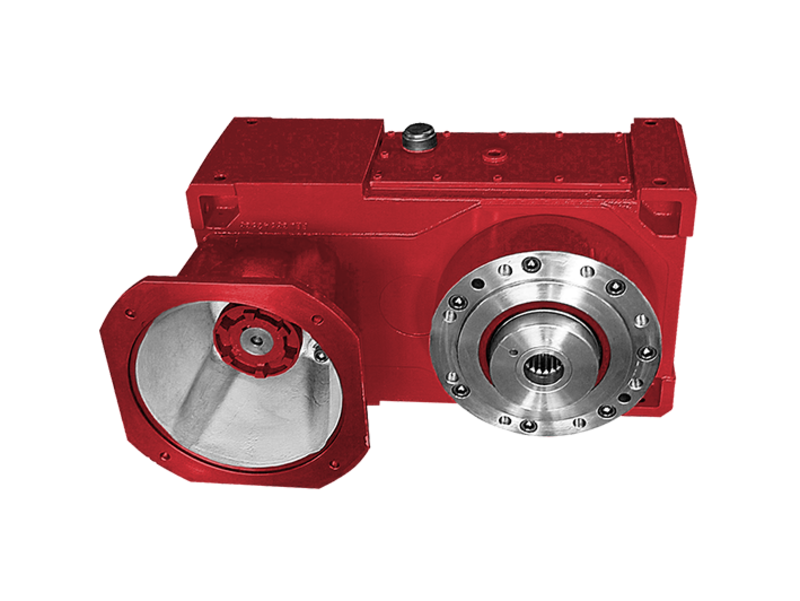

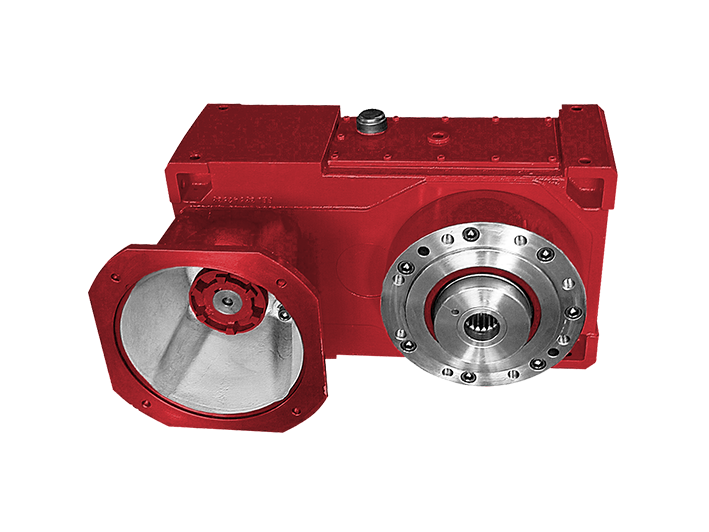

Gearbox FEL for single-screw extruder with long centre distance
The design of the flat extruder series FEL from RSGetriebe is based on the extruder gearboxes of the FEX series. It therefore has the same excellent quality features: high power density and a compact design.
Every gearbox is configured according to your needs. The housing form can be adapted in length – according to the application. In some cases, the transmission ratio is achieved with intermediate gears.
The gearboxes of the FEL series are mainly used in the injection moulding industry. They are also in use as bevel or helical screw gearboxes in many areas.
| Power | P | kW | 8 to 560 |
| Ratio | i | 5 to 100 (1 to 3-speed models) | |
| Speed | n1 max | rpm | Up to 3,000 |
| Torque | T2 max | Nm | Up to 200,000 |
| Centre distance | mm | 125 to 900 | |
| Form | Z or U |
| Housing | Cast iron |
| Lubrication | Oil splash lubrication, oil circulation lubrication with pump or separate oil supply unit. |
| Cooling | Oil/water cooler, internal and external, oil/air cooler |
The inputs and outputs are implemented in accordance with the customer's specifications.
