Planetary Gearbox PSD50
Main Spindle Drive to Meet the Highest Demands

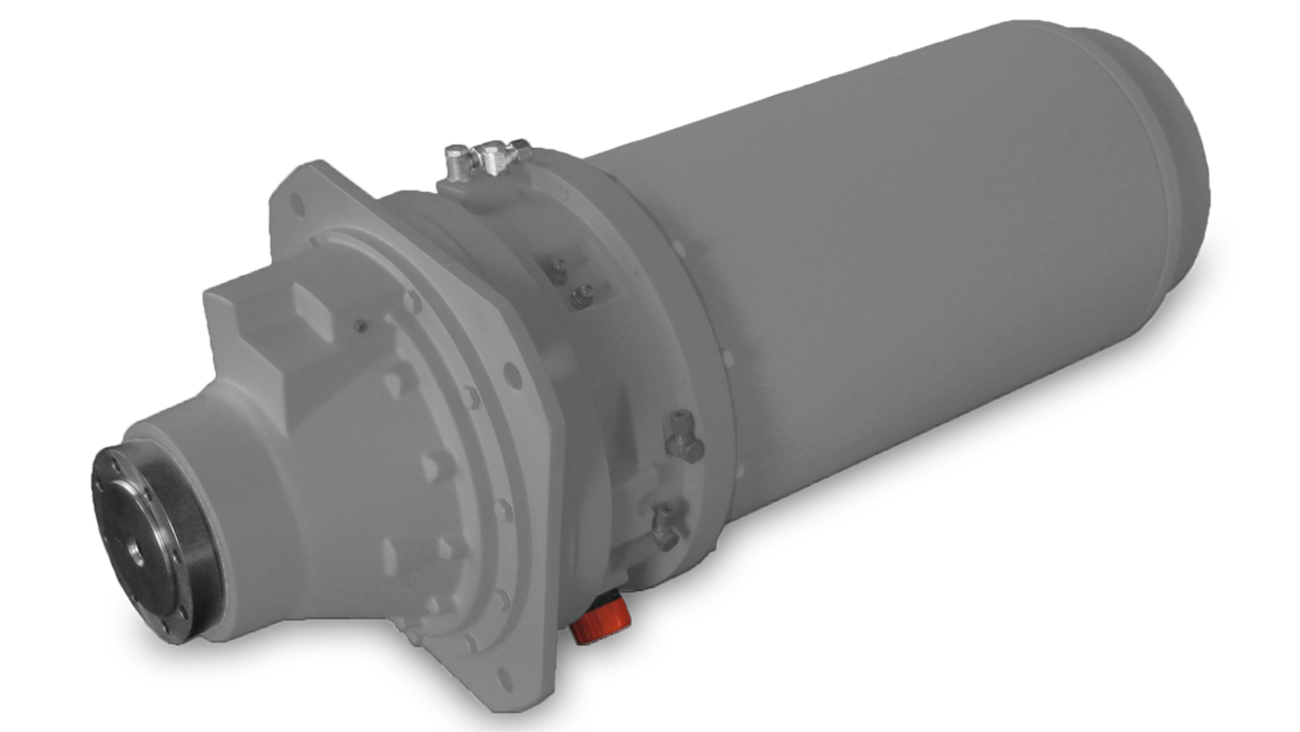

Planetary gearbox PSD50 with motor

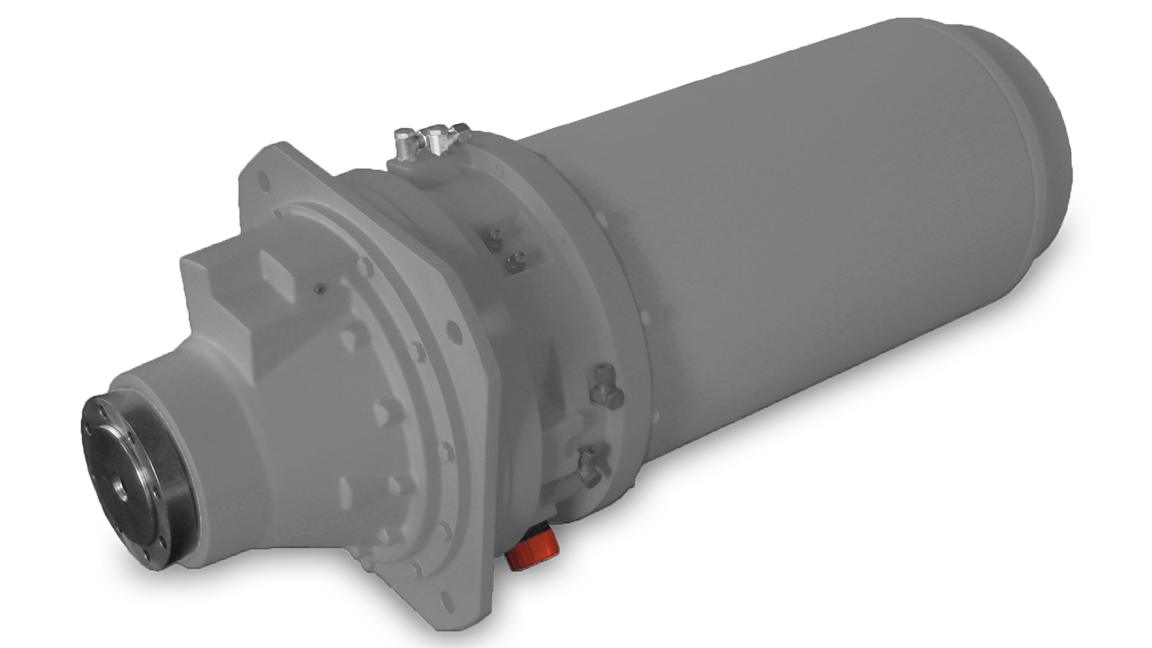

Planetary gearbox PSD50
RSGetriebe is dedicated to providing machine tool manufacturers with just one, universal main spindle drive. The result is the innovative planetary gearbox PSD50. It forms the drive for the main spindle for any type of machine. Above all, the low energy loss and the high power density of the gearbox in a very compact design with a diameter of 320 mm and a length of 300 mm are distinguishing factors of the PSD50.
The 2-speed control planetary gearbox transmits the speeds of rotation directly to the spindle and reduces the necessary torques. The unit can be integrated into the headstock and can be connected with the spindle by flange, belt pulley or gearwheel. The gearbox can be installed vertically or horizontally.
The shiftable sunshaft, which is disengaged at high speeds, guarantees the high efficiency of the gearbox. The planetary gears are thus not in mesh. This significantly reduces energy losses.
The planetary gearboxes PSD50 made by RSGetriebe are available with the following performance data:
| Power | P | kW | 45 to 100 |
| Ratio | i | 1 and 3.15-5.5 | |
| Speed | n2 max | rpm | Up to 8,000 |
| Torque | T2 max | Nm | Up to 3,500 |
| Application factor | KA | 1.5 | |
| Efficiency | Ƞges | ≥ 97% | |
| Max. gearbox temperature | C | 45-50 | |
| Max. noise level | dB | 72-74 | |
| Gear backlash | arcmin | 5-15 | |
| Permitted axial load | Faxial | kN | 30 |
| Runout | 1/100 | 10-20 |
