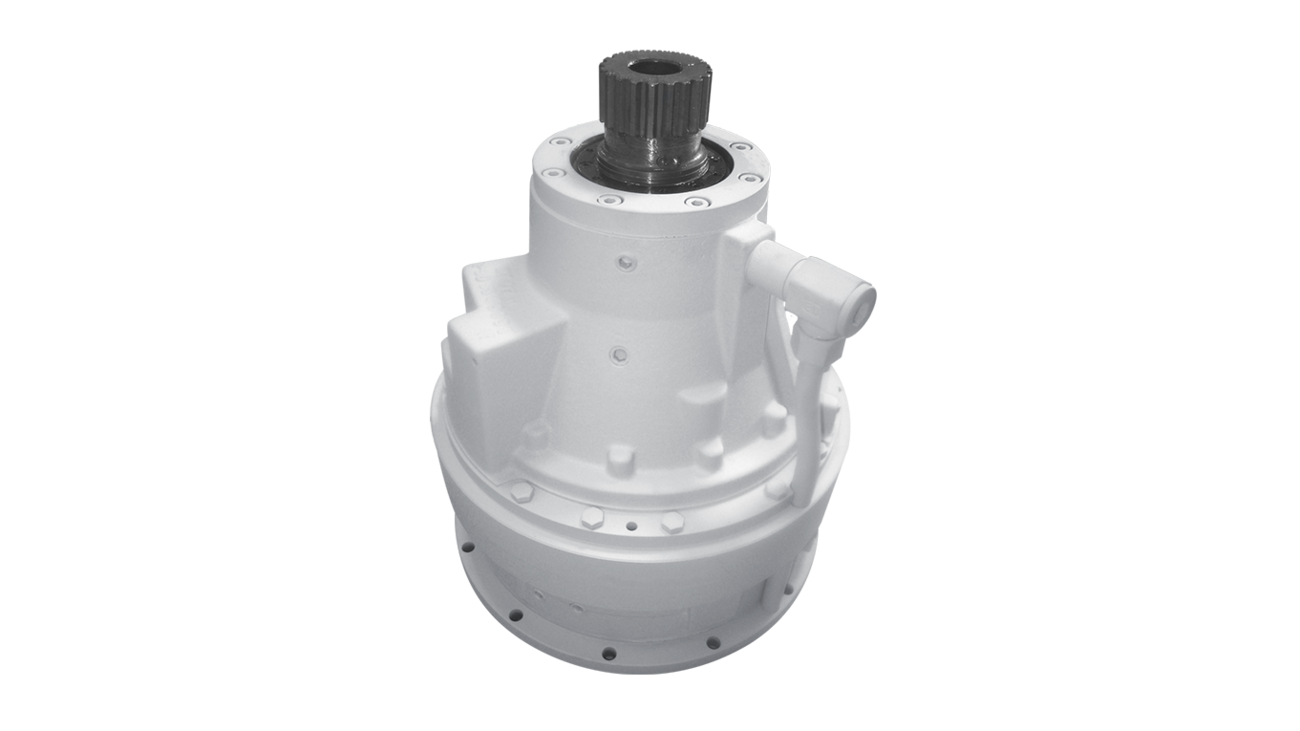

Planetary Gearbox PSD ES
Strong, Efficient, Compact

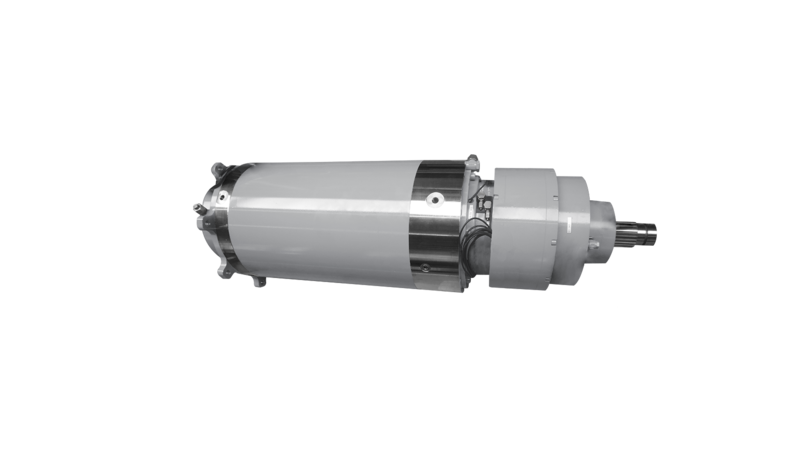

Spindle drive PSD30 with motor unit

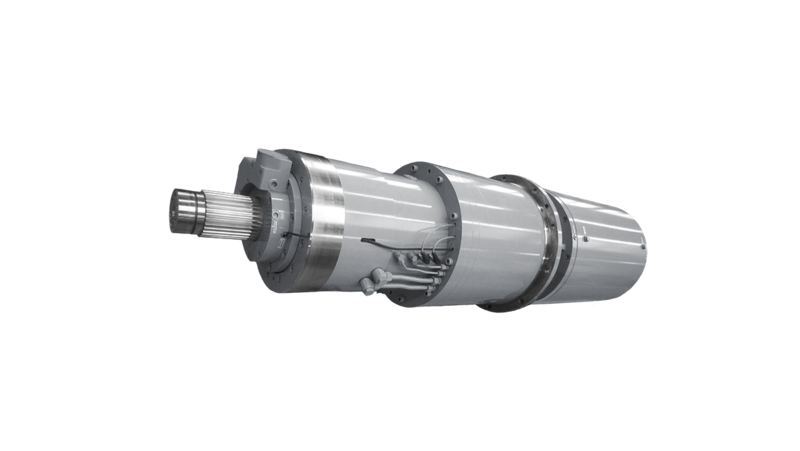

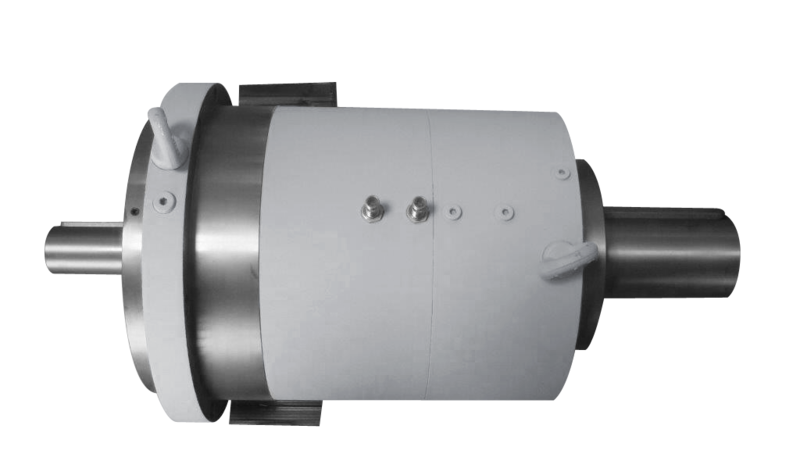

2-speed control planetary gearbox used as a spindle drive
2-speed control planetary gearbox used as a spindle drive
Developed especially for heavy-duty machine tools and for milling machines, lathes and boring mills in particular, the planetary gearbox series never fails to impress with a power range of 30-142 kW and numerous other advantages:
- Compact series
- Modular design
- Flexible machine connection
- High power density
- Complex arrangement
- High efficiency
- Low noise level
- Low temperature level
- Disengagement of the planetary gears
The planetary gearboxes PSD ES made by RSGetriebe are available with the following power data:
| Power | P | kW | 30-142 |
| Ratio | i | Depends on the customer’s requirements and technical feasibility | |
| Speed | n2 max | rpm | Up to 12,500 |
| Torque | T2 max | Nm | Up to 12,000 |
